What will replace the "?" sign in the given characteristic table of SR f‌lip-f‌lop, if O(t+1) is the binary state of output after the occurrence of a clock transition (referred to as next state)?

How many characters per second (CPS) can be transmitted over a 1000-baud line with a character code of 8 bits. in the synchronous serial transmission mode?

Computer Architecture & Engineering

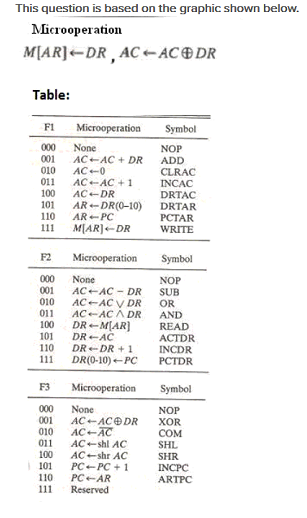

Use the table in the given image to find the 9-bit microoperation field for the microoperation given on top of the table.

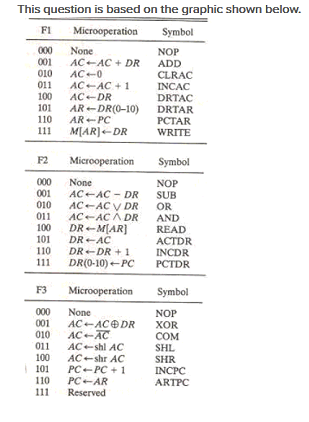

Using the given table, convert the following symbolic micro operations to binary.

SHL, DRTAR, WRITE

What is the Excess-3 Gray code for the given number?

Suppose the content of a 4obit register is 1010. The register is shifted five times to the right with serial input being 10110. What is the content of the register after five shifts?

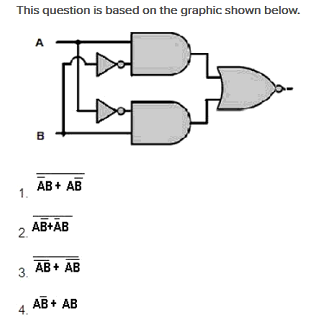

What will be the output of the given logic gate?

Suppose you have to multiply two 20 x 20 matrices using vector processor. To calculate the product matrix. how many multiply-add operations are required?

Which of the following is the correct sum of product form for the given K-Map (Karnaugh map)?

State whether the following statement is true or false.

A micro-program sequencer executes a micro-instruction.

State whether the following statement is true or false.

Physical memory is divided into several smaller, equal-sized parts called pages.

Which of the following memory reference instructions has the symbolic description given in the image:

where PC = program counter and AR = address register?

Convert the following arithmetic expression from inf‌ix to RPN (Reverse Polish Notation)

Which of the following options is the logic diagram of half-adder?

Is the following register transfer statement correct?

Which of the following options allows a direct memory access (DMA) controller to transfer data words one at a time?

Assume a small crossbar switch network is used to connect two processors and f‌ive memory modules.

How many total switches (switch points) should be there?

If an instruction is read from memory then compute the effective address in relative address mode

when the content of the Program counter is 824 and the address part of the instruction contains 24.

Which of the following Flynn‘s classif‌ications represents an organization in which there is a common control unit that supervises many processing units?

What will be the output, if

Multiplicand= 10111

Multiplier: 10011?

There is an 8-bit register AR with initial value 11000101. What would be the f‌inal value in the register AR after performing four bitwise operations. i.e. logical left shift. right circular shift. logical right shift. and left circular shift?

From the options given in the image. select the correct answer for converting the following arithmetic expression from reverse polish notation to inf‌ix notation:

ABCDEFG+

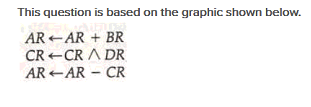

There are four 8-bit registers. as follows:

What will be the value in the AR register after the execution of the sequence of micro operations given in the image?

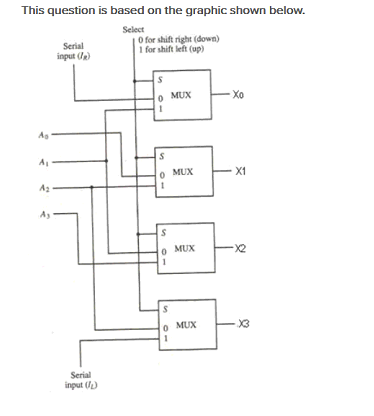

What will be the value ofX in the given f‌igure when A=1101, S=1, IR=1 and IL=0?

Here S is the selection input, and IR and IL are serial inputs.

What will be the value of X after performing the given operations?

Which of the given options are the correct demonstrations of instruction format
